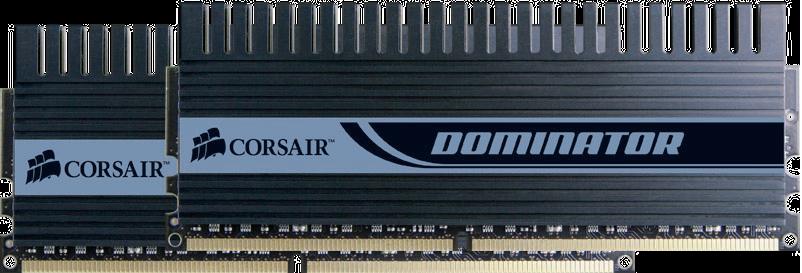

The Dominator Series Twin2X2048-10000C5DF is a 2048 MByte matched pair of DDR2
SDRAM DIMMs built using Corsair’s latest high performance heat sink with Dual-Path Heat
Xchange (DHX) technology coupled with a Corsair Dominator Airflow Fan. This part is
designed to unleash performance of the new NVIDIA nForce 680i SLI-based platform. This
memory has been verified to operate at 1250MHz at latencies of 5-5-5-18. The
Twin2X2048-10000C5DF comes with Enhanced Performance Profiles (EPP), the open
standard for performance module SPD’s jointly developed by Corsair and NVIDIA. EPP SPD’s
on Corsair modules allow users to automatically configure EPP enabled motherboards with
aggressive memory performance settings, for maximum memory and system performance.
TWIN2X2048-10000C5DF
Every part is tested in Corsair's factory at 1250MHz, but your actual results may vary depending on the overclocking margin of your CPU and motherboard. Newer motherboards may be
used for production test as they become available. Corsair may periodically update the part with newer RAM revisions of same or greater performance. RAM used on the module may
change without notice. © August 2007 Corsair Memory, Inc.
F E AT U R E S
? 2048 Megabytes of DDR2 memory
? Two matched CM2X1024-10000C5D modules
? Using DHX technology providing maximum cooling
? Includes Airflow Fan for maximum thermal transfer
? Enhanced Performance Profiles allow
automatic overclocking to aggressive
performance settings
? 100% tested at 1250MHz on nForce 680i SLI
EVGA performance DDR2 motherboards
? Lifetime warranty
T E S T S P EC S
? Each module pair is tested together at 1250MHz
? Tested and packaged in pairs
? Packaged together immediately following
system test
? Tested at EPP SPD settings (5-5-5-18) at 2.4V
at 1250MHz
? SPD programmed at:
JEDEC standard 5-5-5-18 values at 800MHz
EPP standard 5-5-5-18, 2.4V values
Dual-path Heat Xchange Diagram
• Optimized fins to maximize ambient airflow through the module array
• Extruded aluminum heat sinks to maximize convective heat dissipation
• Dedicated PCB heat sink
